Stainless steel wire is widely used for General Purpose Wire, Spring Wire, Roping Wire, Braiding Wire, Weaving wires, Scrubbing Wire, Cold heading Wire, Straight Cut to Length, Stranded Wires for Braiding and others. .

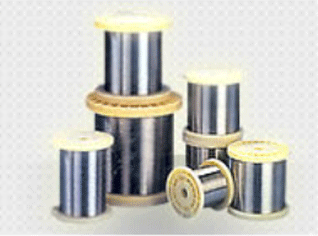

1.General purpose wire

Special Characteristics

Bright and shiny surface by developing a new drawing technology
Superior corrosion and heat resistance
Various chemical composition and tensile strength according to applications
High productivity by variety of packing

Grade: AISI 302/304/304L/304HC(304J3)/305/310S/314/316/316L/321/430/446/302HQ(XM-7)

Diameter: 0.08mm ~ 9.0mm

Packing: Coil/Spool/Carrier/Pail Pack

Surface Finish: Bright/Dull

Application: Kitchenware/Furniture/Fishing/Staple/Conveyor Belt/Re-drawing Use/Agricultural Use

Chemical Composition

Grade	Chemical Composition(%)
	C Max.	Si Max.	Mn Max.	P Max.	S Max.	Ni	Cr	N Max.	Other
302	0.15	1.00	2.00	0.045	0.030	8.0∼ 10.0	17.0∼ 19.0	0.10	-
304	0.08	1.00	"	0.045	0.030	8.0∼ 10.5	18.0∼ 20.0	0.10	-
304J3 (304HC)	0.08	1.00	"	"	"	8.0∼ 10.5	17.0∼ 19.0	-	Cu1.0∼ 3.0
304L	0.03	1.00	"	"	"	8.0∼ 12.0	18.0∼ 20.0	0.10	-
305	0.12	1.00	"	"	"	10.5∼ 13.0	17.0∼ 19.0	-	-
316	0.08	1.00	"	"	"	10.0∼ 14.0	16.0∼ 18.0	0.10	Mo2.0∼ 3.0
316L	0.03	1.00	"	"	"	10.0∼ 14.0	16.0∼ 18.0	0.10	Mo2.0∼ 3.0
310S	0.08	1.50	"	"	"	19.0∼ 22.0	24.0∼ 26.0	-	-
314	0.25	1.50∼3.00	"	"	"	19.0∼ 22.0	23.0∼ 26.0	-	-
321	0.08	1.00	"	"	"	9.0∼ 12.0	17.0∼ 19.0	-	Ti5xC min.
XM 7	0.08	1.00	"	"	"	8.5∼ 10.5	17.0∼ 19.0	-	Cu3.0∼ 4.0
446	0.20	1.00	1.50	0.040	"	-	23.0∼ 27.0	0.25	-
430	0.12	1.00	1.00	"	"	-	16.0∼ 18.0	-	-

Tolerance & Ovality

Diameter mm	Tolerance mm	Ovality mm
0.02 - 0.049	+0.002/-0.001	+0.002/-0.001
0.05 - 0.079	±0.002	Max.0.002
0.08 - 0.10	±0.003	Max.0.003
0.11 - 0.16	±0.004	Max.0.004
0.17 - 0.25	±0.006	Max.0.006
0.26 - 0.40	±0.008	Max.0.008
0.41 - 0.70	±0.010	Max.0.010
0.71 - 1.00	±0.015	Max.0.015
1.01 - 1.60	±0.02	Max.0.02
1.61 - 2.80	±0.03	Max.0.03
2.81 - 5.00	±0.04	Max.0.04
5.01 - 9.00	±0.05	Max.0.05

Mechanical Properties

Hardness	Grade	Diameter mm	Tensile Strength N/㎟(kgf/㎟)	Elongation %
SOFT	302,304,304L, 310S,314,321, 446, 305,316 , 316L	0.08 - 0.16	650(67)-900(91)	Min. 20
		0.17 - 0.50	610(63)-860(87)
		0.51 - 1.60	570(59)-820(83)	Min. 30
		1.61 - 5.00	520(54)-770(78)
		5.01 - 6.00	500(51)-750(76)
	430	0.08 - 5.00	490(50)-740(75)	-
	304HC(304J3) 305,XM-7	0.08 - 0.16	620(64)-870(88)	Min. 20
		0.17 - 0.50	580(60)-830(84)
		0.51 - 1.60	540(56)-790(80)	Min. 30
		1.60 - 5.00	500(51)-750(77)
		5.01 - 6.00	490(50)-740(75)
1/4H	304,304L,316, 316L,303	0.80 - 1.60	780(80)-1130(115)	-
		1.61 - 5.00	740(76)-1080(110)
		5.01 - 6.00	740(76)-1030(105)
	430	0.08 - 5.00	530(55)-790(80)	-
		5.01 - 10.0	490(50)-740(75)
1/2H	302,304, 305,316	0.80 - 1.60	1130(116)-1470(149)	-
		1.61 - 5.00	1080(111)-1420(144)
		5.01 - 6.00	1030(106)-1320(134)
	430	0.08 - 5.00	880(90)-1070(110)	-
3/4H	302,304, 305,316	0.15 - 0.20	1650(169)-1900(193)	-
		0.21 - 0.60	1600(164)-1850(188)
		0.61 - 1.00	1530(156)-1780(181)
		1.01 - 1.40	1450(148)-1700(173)
		1.41 - 2.00	1400(143)-1650(168)
		2.01 - 2.60	1320(135)-1570(160)
		2.61 - 4.00	1230(126)-1480(150)
		4.01 - 5.00	1100(113)-1350(137)
F/H	302,304	0.08 - 0.20	2150(220)-2400(244)	-
		0.21 - 0.40	2050(210)-2300(234)
		0.41 - 0.60	1950(199)-2200(224)
		0.61 - 1.00	1850(189)-2100(214)
		1.01 - 1.40	1750(179)-2000(204)
		1.41 - 2.00	1650(169)-1900(193)
		2.01 - 2.60	1550(159)-1800(183)
		2.61 - 4.00	1450(148)-1700(173)



Packing

Diameter (mm)	Packing Wt.(Kg)-(B; Bright, D; Dull)
	SOFT					1/4H
	Spool	Coil		Pail Pack		Spool	Coil		Carrier
	B	B	D	B	D	B	B	D	B	D
0.08-0.10	0.8	-	-	-	-	-	-	-	-	-
0.10-0.14	1.5	-	-	-	-	-	-	-	-	-
0.10-0.25	3	-	-	-	-	-	-	-	-	-
0.16-0.50	6	-	-	-	-	-	-	-	-	-
0.20-0.79	12	-	-	-	-	-	-	-	-	-
0.30-0.79	22	-	-	-	-	-	-	-	-	-
0.50-0.79	22	-	-	-	-	22	15	-	-	-
0.80-1.10	-	30	30	200	200	22	30	50	-	-
1.20-1.80	-	50	50	200	200	-	50	50	-	-
1.90-2.30	-	100	100	-	-	-	100	50	800	800
2.40-6.50	-	100	100	-	-	-	100	100	800	800
6.60-9.00	-	100	100	-	-	-	100	100	800	800



Diameter (mm)	Packing Wt.(Kg)-(B; Bright, D; Dull)
	1/2H			3/4H,F/H
	Spool	Coil		Spool	Coil
	B	B	D	B	B	D
0.08-0.10	-	-	-	-	-	-
0.10-0.14	-	-	-	-	-	-
0.10-0.25	-	-	-	-	-	-
0.16-0.50	-	-	-	-	-	-
0.20-0.79	12	-	-	12	-	-
0.30-0.79	22	8	-	22	8	-
0.50-0.79	22	15	-	22	15	-
0.80-1.10	22	30	50	22	30	50
1.20-1.80	-	50	50	-	50	50
1.90-2.30	-	100	100	-	100	100
2.40-6.50	-	100	100	-	100	100

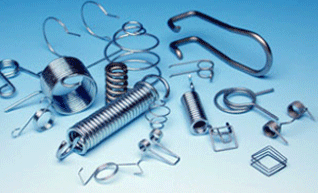

2. Spring Wire



Special Characteristics Bright and Shiny Surface Superior coiling efficiency Quality Guarantee according to applications Grade: AISI 302/304/304N1/305/316 Diameter: 0.080mm ~ 5.00mm Packing : Coil, Spool Surface Finish : Bright/Dull Chemical Composition: See above

 Packing

Diameter(mm)	Surface		Coating	Packing(Kg)
	Bright	Dull		W't/Coil(Coil I/D)	W't/Spool
0.15-0.29	O	-	No	-	11(DIN200)
0.30-0.39	O	-	″	8(8 In.)	20(DIN250)
0.40-0.60	O	-	″	15(10 In.)	20(DIN250)
0.60-0.79	O	-	″	25(12 In.)	20(DIN250)
0.80-0.99	O	O	Option(Dull)	30(14 In.)	-
1.00-1.79	O	O	″	50(16 In.)	-
1.80-4.20	O	O	″	100(24 In.)	-



 3. Roping Wire

Special Characteristics: Quality guarantee according to applications/Variety of packing Grade: AISI 302/304/304N1/305/316 Diameter: 0.2mm ~ 2.03mm Packing: Coil/Spool Surface Finish: Bright

Chemical Composition: See above
Tolerance, Ovality & Tensile Strength (ASTM A 492)

Diameter Inch(mm)	Tolerance Inch(mm)	Max.Ovality Inch(mm)	Tensile Strength ksi(MPa)
			302/304	305/316
incl 0.008(0.20)-0.010(0.25)incl	±0.00024 (0.006)	0.00024 (0.006)	312(2150)- 350(2410)	Min. 245 (1690)
Over 0.010(0.25)-0.015(0.38)incl	±0.00032 (0.008)	0.00032 (0.008)	310(2140)- 345(2380)	Min. 240 (1650)
Over 0.015(0.38)-0.019(0.48)incl	±0.0004 (0.010)	0.0004 (0.010)	305(2100)- 340(2340)
Over 0.019(0.48)-0.025(0.64)incl			295(2030)- 330(2280)	Min. 235 (1620)
Over 0.025(0.64)-0.028(0.70)incl			285(1960)- 315(2170)
Over 0.028(0.70)-0.030(0.76)incl	±0.0006 (0.015)	0.0006 (0.015)
Over 0.030(0.76)-0.035(0.89)incl			275(1900)- 310(2140)
Over 0.035(0.89)-0.040(1.02)incl			260(1790)- 300(2070)
Over 0.040(1.02)-0.050(1.27)incl	±0.0008 (0.02)	0.0008 (0.02)	255(1760)- 285(1970)	Min. 230 (1590)
Over 0.050(1.27)-0.060(1.52)incl			250(1720)- 280(1930)	Min. 225 (1550)
Over 0.060(1.52)-0.063(1.60)incl			245(1690)- 275(1900)	Min. 220 (1520)
Over 0.063(1.60)-0.070(1.78)incl	±0.0012 (0.03)	0.0012 (0.03)
Over 0.070(1.78)-0.080(2.03)incl			240(1650)- 270(1860)	Min. 210 (1450)

Packing

Diameter in.(mm)	Surface	Packing	Spool	Packing Wt. Lbs(kg)
incl 0.008(0.20)-0.010(0.25)incl	Bright	Spool	DIN-200	24 (11)
Over 0.010(0.25)-0.050(1.00)incl	″	″	DIN-200/250	24/44 (11/20)
Over 0.050(1.00)-0.060(2.03)incl	″	Coil	-	110 (50)

4. Braiding Wire

Special Characteristics *Superior corrosion and heat resistance *Bright and shiny surface and beautiful appearance *Minimum loss occurrence during your braiding operation by our new winding *Facilities and rigid quality control Grade: AISI 304/304L/310S/314/316/316L/316Ti Diameter: 0.2mm ~ 0.7mm Packing: Spool Surface Finish: Bright Application: Bellows/Flexible Hose/Braiding

(Stainless steel braided hose)

Dimension & Mechanical Properties

Grade	Diameter mm	Tolerance mm	Ovality mm	Tensile Strength N/㎟(kgf/㎟)	Elongation %
304, 304L 316, 316L 314, 310S	0.200 - 0.25	±0.006	Max.0.006	610(63)-860(87)	Min. 20
	0.251 - 0.40	±0.008	Max.0.008
	0.401 - 0.50	±0.010	Max.0.010
	0.501 - 0.70			570(59)-820(83)	Min. 30

5. Weaving Wire

Special Characteristics *Superior corrosion and heat resistance *Bright and shiny surface and beautiful appearance *Minimum loss occurrence during your weaving *operation by our new winding facilities and rigid quality control Grade: AISI 304/304L/316/316L/316Ti/310S Diameter: 0.08mm ~ 6mm Packing: Coil/Spool/Carrier/Pail Pack Surface Finish: Bright/Dull Application: *Filters/Screen/Braiding/Chemical *Paper Industries/Vehicle Parts

(Stainless steel wire weaving)

Tolerance, Ovality & Mechanical Properties

Diameter mm	Tolerance mm	Ovality mm	Tensile Strength N/㎟(kgf/㎟)	Elongation%
0.080 - 0.100	±0.003	Max.0.003	650(67)-900(91)	Min. 20
0.101 - 0.160.	±0.004	Max.0.004
0.161 - 0.250	±0.006	Max.0.006	610(63)-860(87)
0.251 - 0.400	±0.008	Max.0.008
0.401 - 0.500	±0.010	Max.0.010
0.501 - 0.700			570(59)-820(83)	Min. 30
0.701 - 1.000	±0.015	Max.0.015
1.001 - 1.60	±0.02	Max. 0.02
1.601 - 2.80	±0.03	Max. 0.03	520(54)-770(78)
2.801 - 5.00	±0.04	Max. 0.04
5.001 - 6.00	±0.05	Max. 0.05	500(51)-750(76)


Packing

Diameter (mm)	Surface	Packing	Spool	Weight (kg)
0.08-0.10	Bright	Spool	DIN-80	0.8
0.10-0.14	″	″	DIN-100	1.0
0.10-0.25	″	″	DIN-125	3.0
0.16-0.50	″	″	DIN-160	5.0
0.20-0.79	″	″	DIN-200	11.0
0.25-0.79	″	″	DIN-250	20.0
0.80-0.89	″	Coil	-	30
	″	Pail pack	-	200
	″	Carrier	-	100
0.90-1.79	″	Coil	-	40/50
	″	Pail pack	-	200
	″	Carrier	-	100/150
1.80-2.00	″	Coil	-	80
	″	Carrier	-	200/300
2.01-6.00	″	Coil	-	100/150/200/300/400
	″	Carrier	-	200/400



6. Streight cut to Length

Special Characteristics: Superior straight efficiency Grade: AISI 302/304/304L/305/316/316L/430 Diameter: 1.6mm ~ 6.0mm Packing: Bundle Surface Finish: Bright/Dull Application: Shaft/Bar/Kitchenware/Furniture

Tolerance & Ovality

Diameter (mm)	Tolerance (mm)	Ovality (mm)
1.60 - 2.80	±0.03	Max. 0.03
2.81 - 5.00	±0.04	Max. 0.04
5.01 - 6.00	±0.05	Max. 0.05

Packing

Diameter mm	Length mm	Packing	Weight/Bundle Kg
1.60incl - 2.00incl.	150 - 2,000	Bundle	25 - 50
2.00over - 3.00incl.	150 - 4,000	″	25 - 50
3.00over - 6.00incl.	150 - 6,000	″	25 - 50



7. Scrubbing Wire

Special Characteristics: Excellent curling and redrawing efficiency by strict drawing and heat treatment control Grade: AISI 304/430/434 Diameter: 0.12mm ~ 0.80mm Packing: Coil/Spool/Pail Pack Surface Finish: Bright/Dull

(Stainless steel scrubber)

Chemical Composition:

Grade	Chemical Composition(%)
	C(Max)	Si(Max)	Mn(Max)	P(Max)	S(Max)	Ni	Cr	N(Max)	Others
304	0.08	1.00	2.00	0.045	0.030	8.0∼ 10.5	18.0∼ 20.0	0.10	-
430	0.12	1.00	1.00	0.040	"	-	16.0∼ 18.0	-	-

Tolerance, Ovality , Tensile Strength & Packaging

Grade		Diameter (mm)	Tolerance (mm)	Ovality (mm)	Tensile Strength N/mm2(Kgf/mm2)	Packing (kg)
						Type	Weight
Drawn Wire	304	0.120 or 0.125	±0.005	Max. 0.005	Min. 1,800(185)	DIN Spool	6 or 15
	430				Min. 1,100(112)
Annealed Wire	304	0.80	±0.015	Max. 0.015	570(59)-820(83)	Coil	30
	430				490(50)-700(71)	Pail Pack	200
